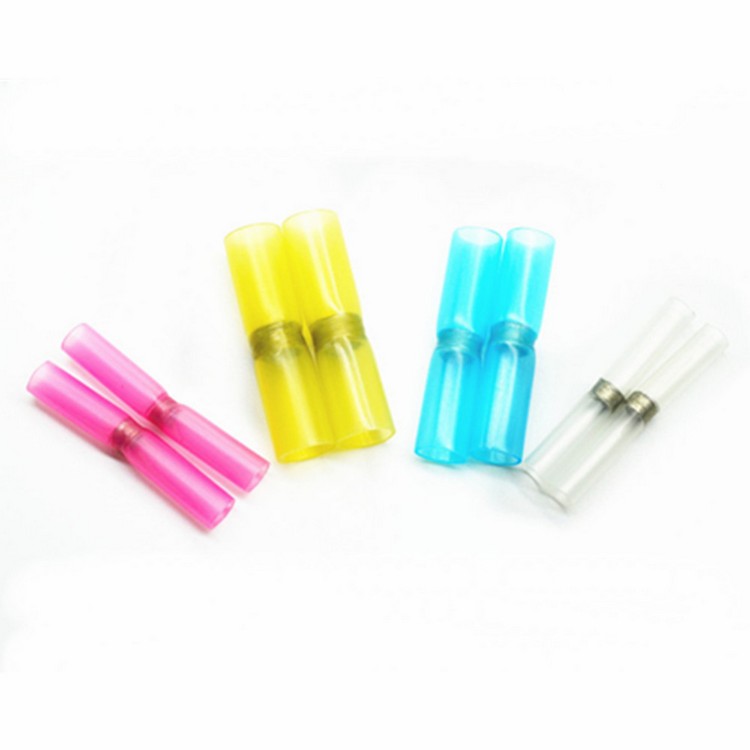

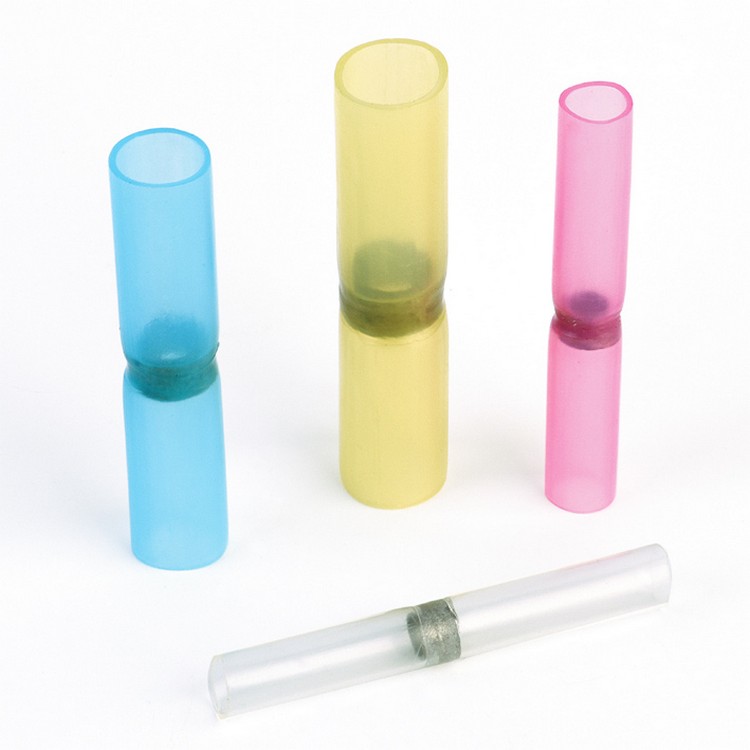

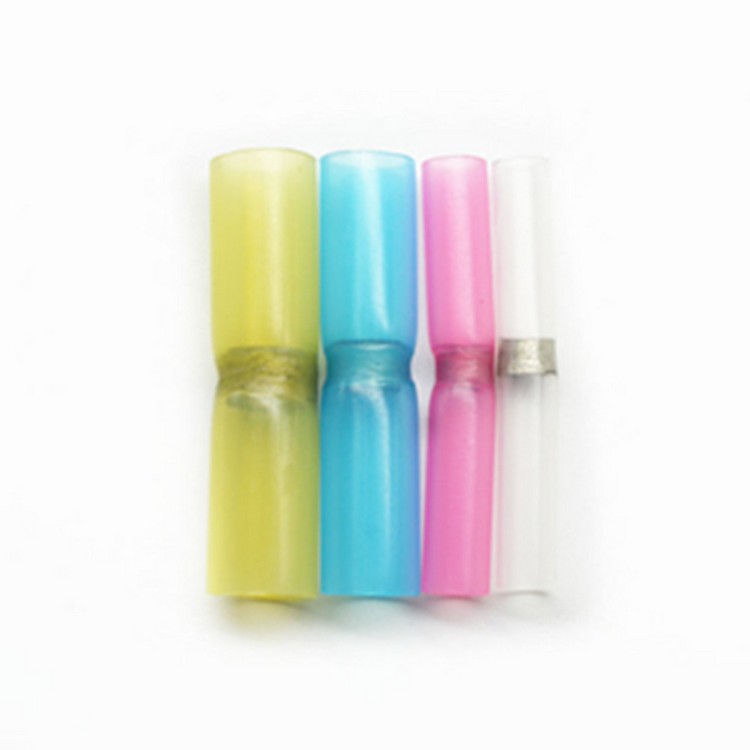

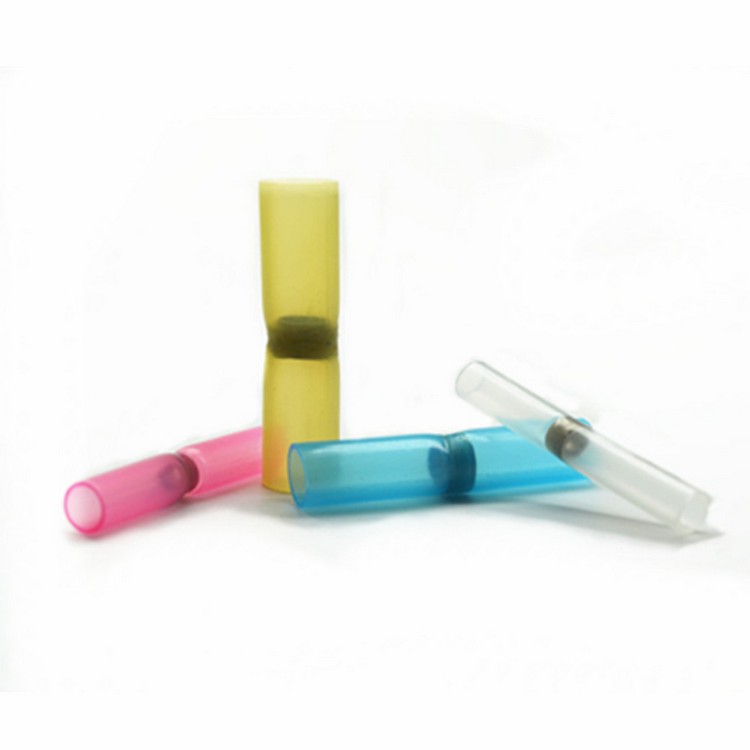

Color-coded insulation sleeve with adhesive lining provides encapsulation, inspectability, strain relief, and insulation, it also indicates the precise selection of wire sizes. A pre-fluxed solder ring provides a controlled soldering process. One-piece design provides easy installation and lowers installation costs. The main application is to connect two or more wires.
Characteristics
Shrink ratio: 3:1
Waterproof for wiring splices
The transparent sleeve provides precise inspection
High transparency, High tensile strength
High elasticity assures steady performance
The easy control soldering process
Operating temperature: -55℃～125℃
Minimum shrink temperature: 160℃
Materials
Insulation: Polyolefin with adhesive lining
Solder Ring with flux
Specification
| Product Code | Size Code Color | L Max(mm) | ΦA Min
(mm) |
Cable Size |
| HP-SST-D00-01 | Clear | 40±1.5 | 1.7 | 0.25-0.5mm2
(26-24 AWG) |
| HP-SST-D00-02 | Red | 40±1.5 | 2.7 | 0.5-1.5mm2
(22-18 AWG) |
| HP-SST-D00-03 | Blue | 40±1.5 | 4.5 | 1.5-2.5mm2
(16-14 AWG) |
| HP-SST-D00-04 | Yellow | 40±1.5 | 6.0 | 4-6mm2
(12-10 AWG) |
Hampool products are widely used in different applications such as wire harness, cable assemblies in commercial electronics, automotive, military, industrial, equipment, truck, and marine, etc.
Usually we relied customers within 24 hours, we supply free samples if need quality confirmation. If any problems with our products, we must solve and replied timely, we may contact face by face and asked our factory to make some explain, solutions.
We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection.
We provides special services such as customized packaging and customized products.
Our factory has always adhered to the principle of solving the same day’s issues on the same day and responding in a timely manner within 24 hours; We provide special services such as customized packaging and customized products; We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection, Best for all customers.
1.Q: Which certifications or test reports do you have?
A: We have UL and RoHS tested by SGS.
2.Q: How to ship my order? Is it safe?
A: For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS.For big packages, we will send them By AIR or By SEA. We will use
