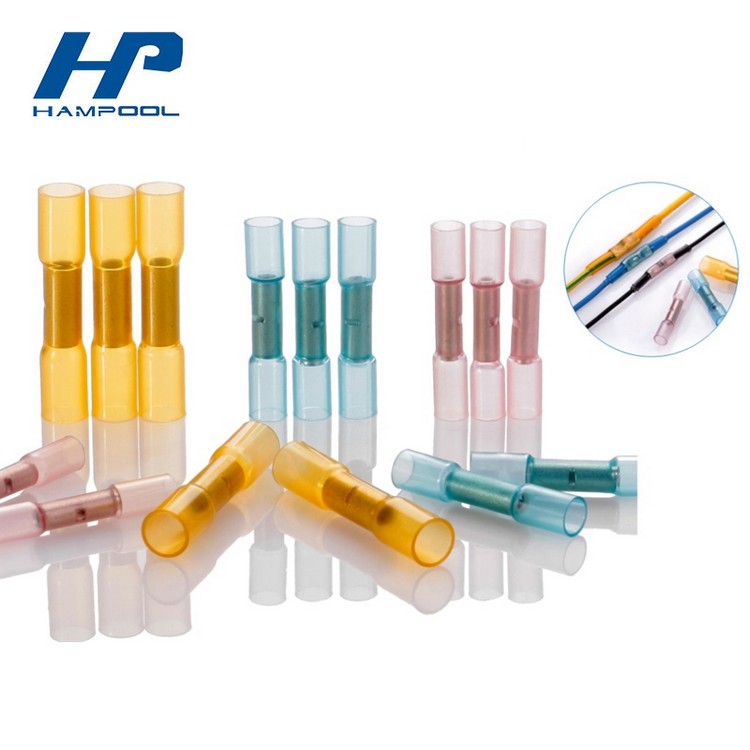

HP-DS-N06 series is the high transparency heat shrinkable tubing made by Nylon, with adhesive lining to protect splices from water and corrosion. It provides strain relief and anti-vibration in rugged environment, and completely insulates and protects electrical connections. The high purity copper tube provides excellent conductivity. It offers long duration performance, easy installation, and low installing cost, which is more reliable than conventional crimp terminals.
Shrink ratio: 3:1
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Minimum shrink temperature: 180℃
Terminal body: Copper
|Part No.||Butt Splice Dimensions (mm)||F
|D Min.||L Nom.|
|HP-DS-N06-0.5||3.2||28.0||12||1.0||Clear||0.25-0.5mm2 (26-24 AWG)|

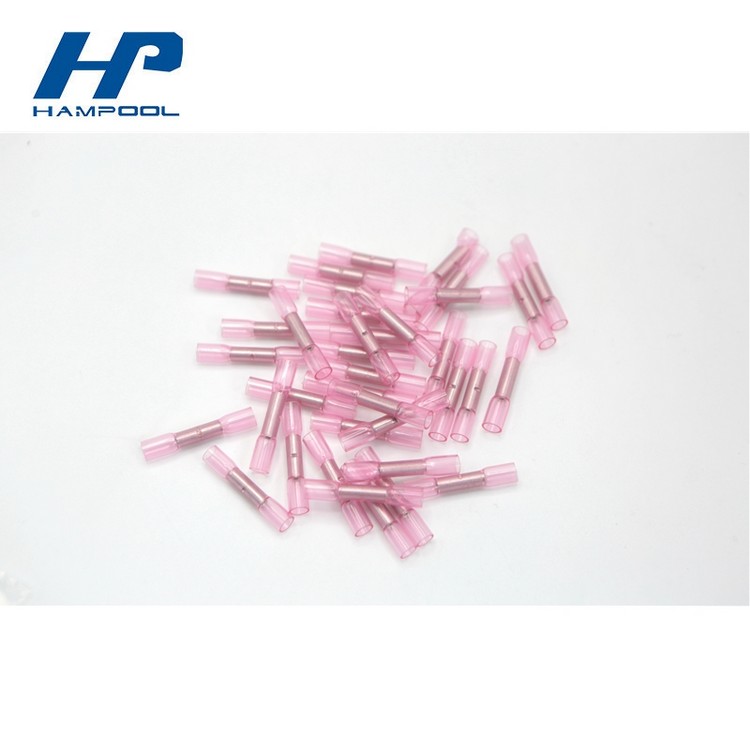

|HP-DS-N06-1.25||4.8||35.0||15||1.6||Red||0.5-1.5mm2 (22-18 AWG)|
|HP-DS-N06-2||5.8||35.0||15||2.2||Blue||1.5-2.5 mm2 (16-14 AWG)|

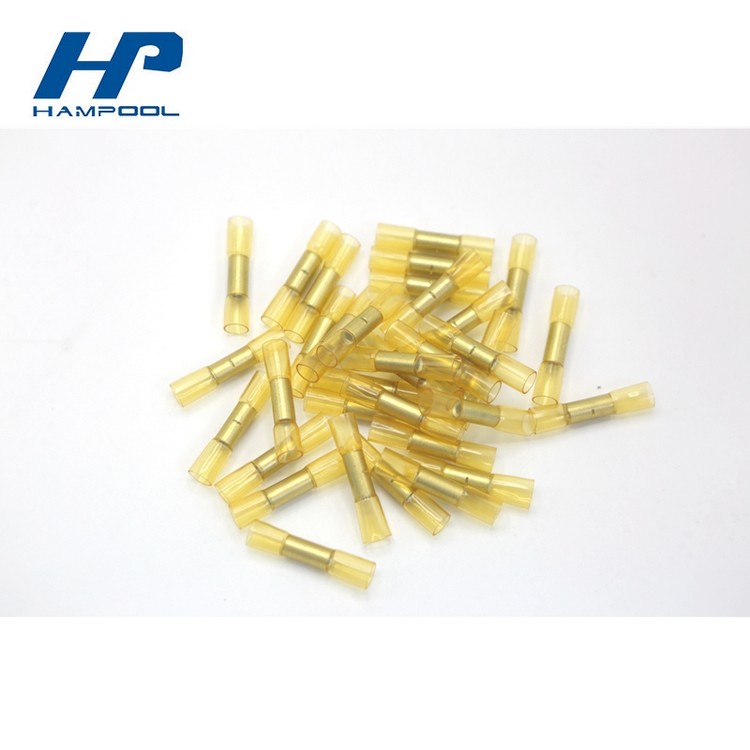

|HP-DS-N06-5.5||6.8||41.0||15||3.4||Yellow||4-6 mm2 (12-10 AWG)|
Hampool products are widely used in different applications such as wire harness, cable assemblies in commercial electronics, automotive, military, industrial, equipment, truck and marine, etc.
Usually we relied customers within 24 hours, we supply free samples if need quality confirmation. If any problems with our products, we must solve and replied timely, we may contact face by face and asked our factory to make some explain, solutions.
We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection and pre-shipment product inspection.
We provides special services such as customized packaging and customized products.
Our factory has always adhered to the principle of solving the same day’s issues on the same day and responding in a timely manner within 24 hours; We provides special services such as customized packaging and customized products; We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection and pre-shipment product inspection , Best for all customers.
