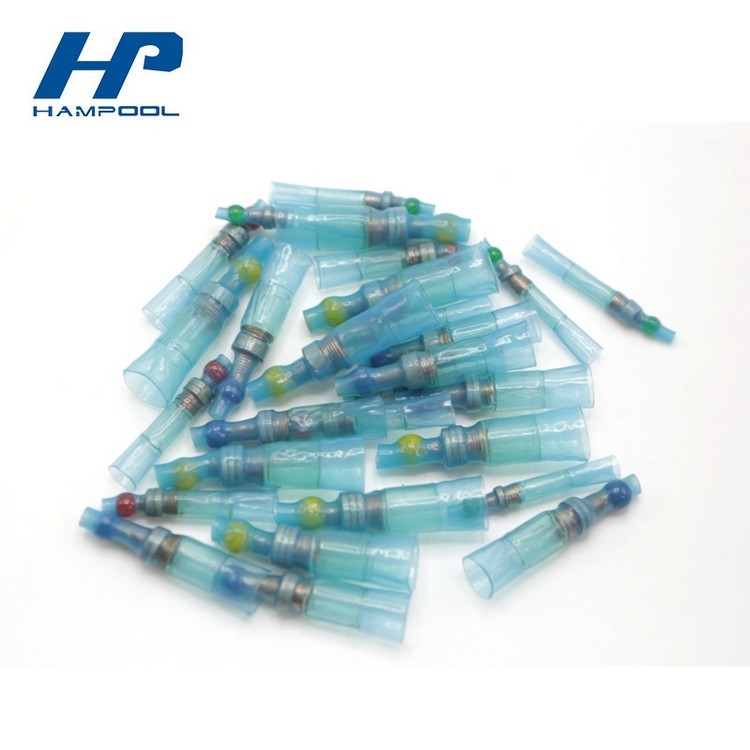

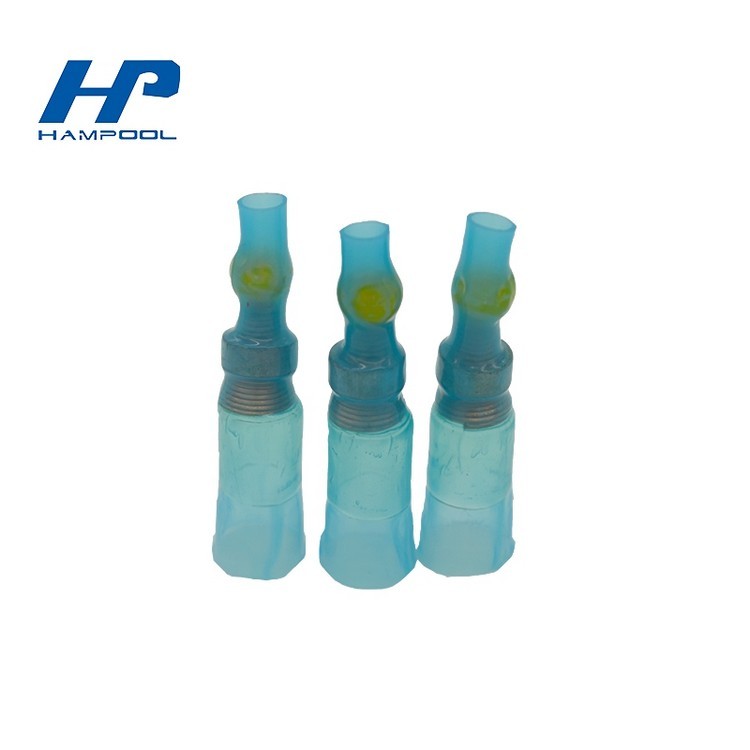

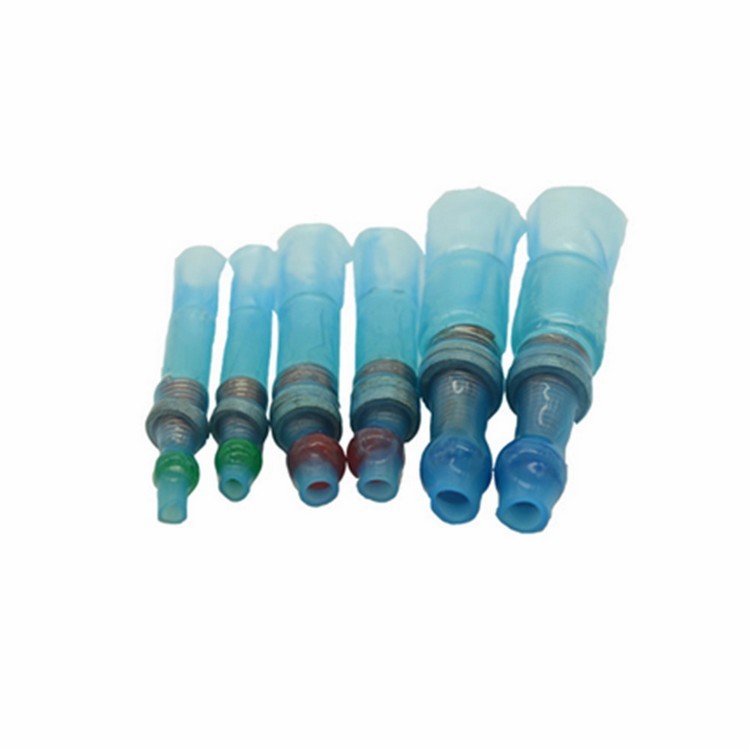

SolderGrip heat-shrinkable solder-type closed-end connector is designed for electrical termination of multiple-wire combinations. It provides a reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors. The unique combination of wire fixturing and controlled soldering technology provides dependable electrical termination of multiple wire combinations. SolderGrip terminators consist of a heat-shrinkable thermoplastic sleeve containing a spiral-wound copper insert. The insert is fitted with a pre-fluxed solder band. Shrink closed-end connectors can replace wire nuts in environments where need to be sealed. Color-coded glass ball identifies the proper wire sizes to use..
Shrink ratio: 2:1
Waterproof for wiring splices
Transparent sleeve provides visual inspection
High elasticity assures steady performance
Easy control of soldering process
Operating temperature: -55℃～150℃
Minimum shrink temperature: 200℃

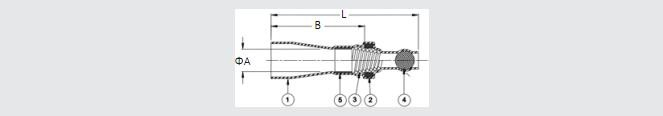

| Product Code | Ball Color | Product Dimensions (mm) | Copper Cross Section (mm2) | Qty Solder | |||
| ΦA | L | B | Min | Max | |||
| HP-SST-SGRS-05-01 | Green | 3.6 | 38 | 26 | 0.7 | 2.4 | 1 |
| HP-SST-SGRS-05-02 | Red | 5.0 | 38 | 26 | 2.0 | 4.0 | 1 |
| HP-SST-SGRS-05-03 | Blue | 7.5 | 45 | 30 | 3.5 | 8.0 | 1 |
| HP-SST-SGRS-05-04 | Yellow | 9.4 | 45 | 30 | 7.5 | 12.0 | 1 |
Hampool products are widely used in different applications such as wire harness, cable assemblies in commercial electronics, automotive, military, industrial, equipment, truck, and marine, etc.
Usually, we relied on customers within 24 hours, we supply free samples if need quality confirmation. If any problems with our products, we must solve them and replied a timely, we may contact face by face and asked our factory to make explain our solutions.
We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection.
We provides special services such as customized packaging and customized products.
Our factory has always adhered to the principle of solving the same day’s issues on the same day and responding in a timely manner within 24 hours; We provide special services such as customized packaging and customized products; We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection, Best for all customers.
1.Q: Which certifications or test reports do you have?
A: We have UL and RoHS tested by SGS.
