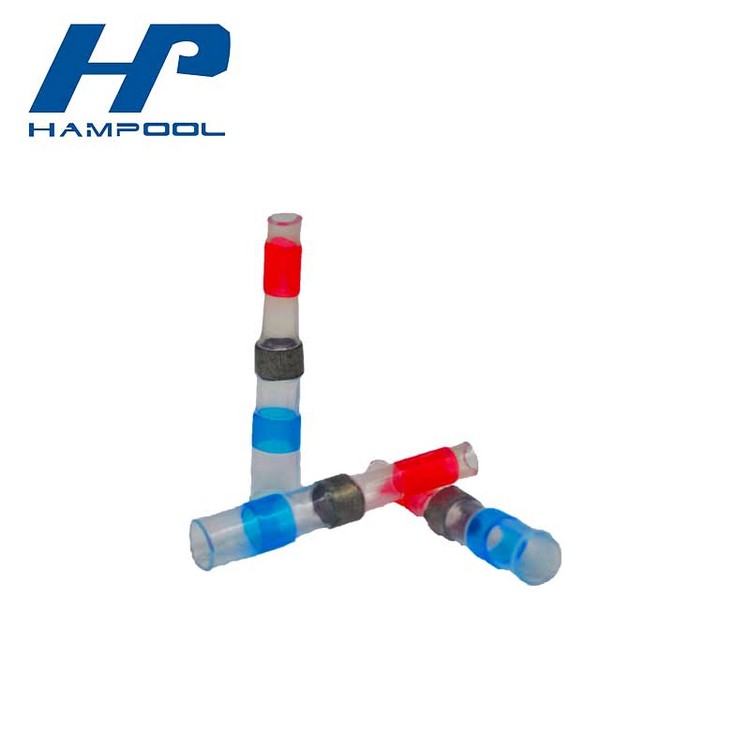

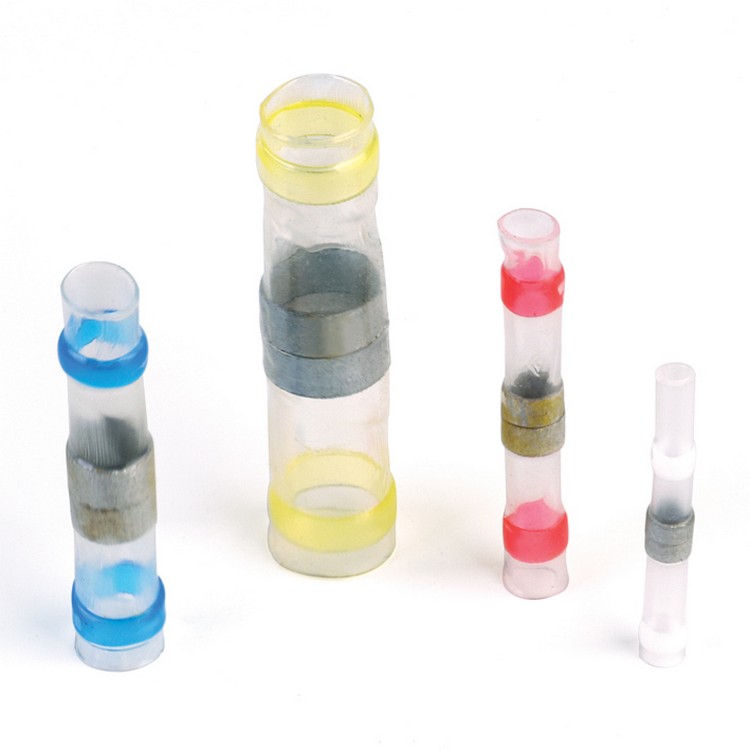

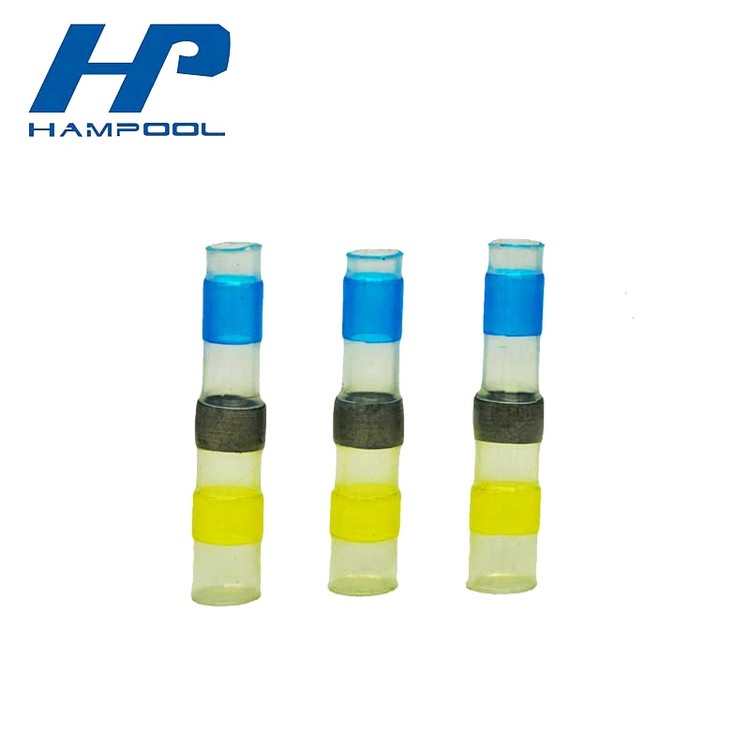

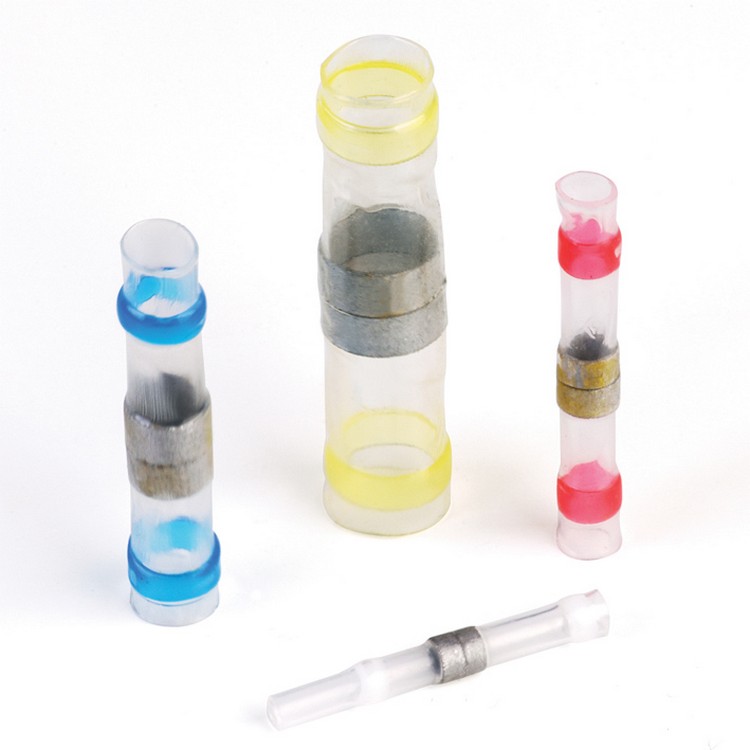

A transparent insulation sleeve provides encapsulation, inspectability, strain relief, and insulation. Two pre-fluxed solder rings provide a controlled soldering process. One-piece design provides easy installation and lowers installation costs. Color-coded hot-melt rings on two ends of the heat-shrinkable tube provide a precise selection of wire size. The main application is to connect two or more wires.
Characteristics
Shrink ratio: 2:1
Waterproof for wiring splices
The transparent sleeve provides visual inspection
High elasticity assures steady performance
Easy control of soldering process
Operating temperature: -55℃～125℃
Minimum shrink temperature: 140℃

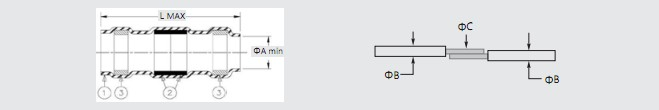

Specification
| Product Code | Size Code Color Item 3 |
L (mm) |
Qty Item 2 |
ΦA Min (mm) | Wire Dimensions (mm) |
Cable Size |
||
| ΦB Min | ΦB Max
ΦC Max |
ΦC Min | ||||||
| HP-SST-205-01 | White | 26 | 2 | 1.7 | 0.4 | 1.7 | 0.76 | 0.25-0.5mm2
(26-24 AWG) |
| HP-SST-205-02 | Red | 30 | 2 | 2.7 | 1.3 | 2.7 | 1.2 | 0.5-1.5mm2
(22-18 AWG) |
| HP-SST-205-03 | Blue | 35 | 2 | 4.5 | 1.8 | 4.5 | 2.0 | 1.5-2.5mm2
(16-14 AWG) |
| HP-SST-205-04 | Yellow | 40 | 2 | 7.0 | 2.8 | 6.0 | 3.4 | 4-6mm2
(12-10 AWG) |
Service Guarantee
Usually, we relied on customers within 24 hours, we supply free samples if need quality confirmation. If any problems with our products, we must solve them and replied a timely, we may contact face by face and asked our factory to make explain solutions.
We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection.
We provide special services such as customized packaging and customized products.
Our factory has always adhered to the principle of solving the same day’s issues on the same day and responding in a timely manner within 24 hours; We provide special services such as customized packaging and customized products; We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection, and pre-shipment product inspection, Best for all customers.
1.Q: Which certifications or test reports do you have?
A: We have UL and RoHS tested by SGS.
2.Q: How to ship my order? Is it safe?
A: For small package, we will send them by Express, such as DHL, FedEx, UPS, TNT, EMS. For big packages, we will send them By AIR or By SEA. We will use.
