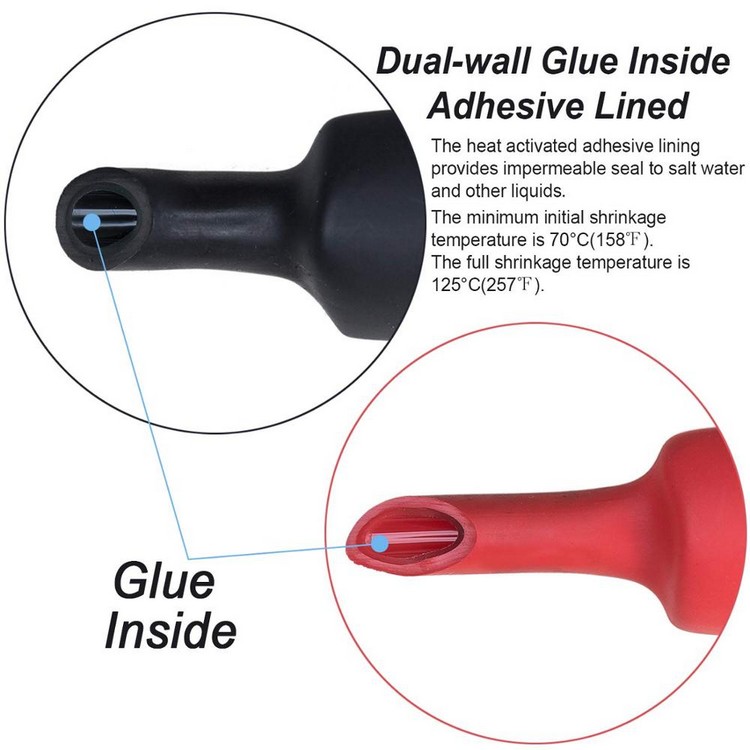

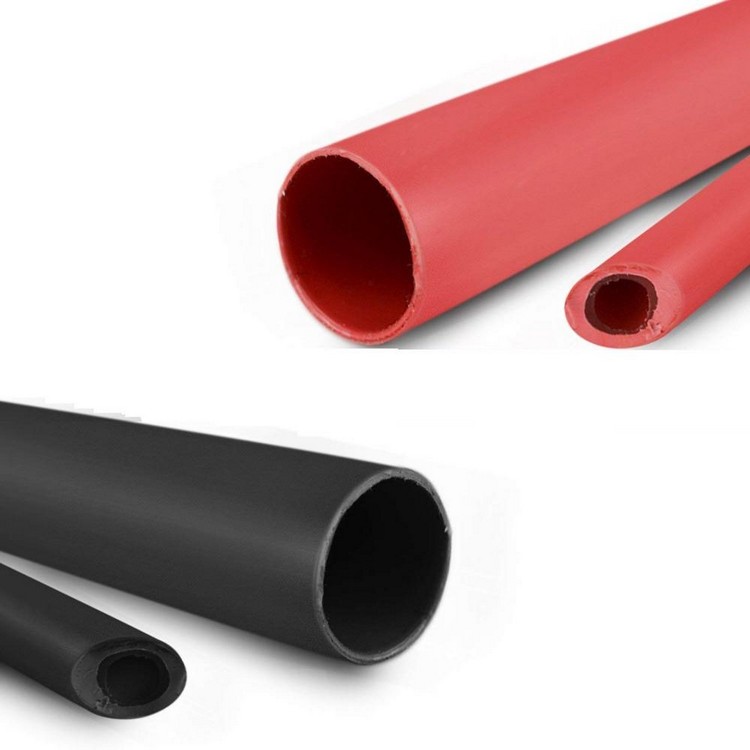

HP-DWT is manufactured by co-extrusion of irradiated cross-linking polyolefin and hot-melt adhesive. This tubing can be used in a wide variety of electrical applications, including back end connector sealing, breakouts and connector-to-cable transitions. High expansion ratio makes it possible to repair most damaged cable jackets without removing connectors. HP-DWT can also protect cable from animal bites. This product is UL listed under file number E361230.
Characteristics

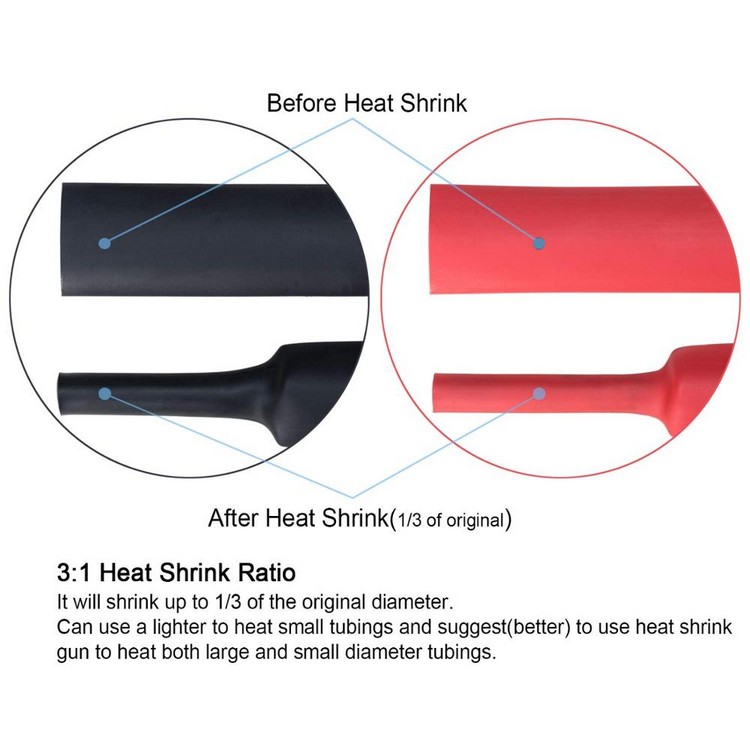

Shrink ratio: 3:1, 4:1
UL and RoHS compliant
Excellent electrical, physical and chemical properties
Waterproof and moisture protection
Good sealing of irregular shapes
Flammability: VW-1
Operating temperature: -55℃～125℃
Minimum shrink temperature: 100℃
Materials
Insulation: Polyolefin, hot-melt adhesive
Specification

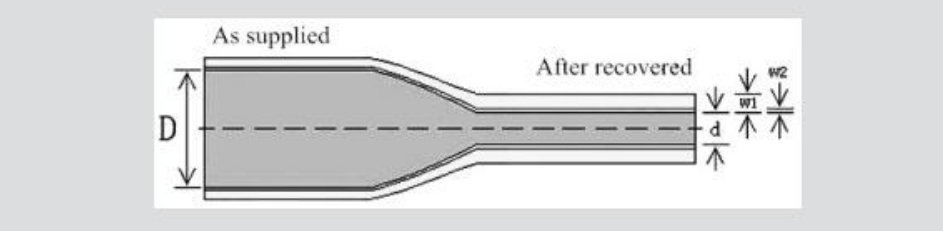

| Size (mm) | As supplied (mm) | After recovered (mm) | Standard Package
(m/Roll) |
||
| I.D. Min | I.D. Max | W1 | W2 | ||
| 3:1 | |||||
| Φ2.4/0.8 | 2.4 | 0.8 | 1.00±0.28 | 0.3 | 1.22/200 |
| Φ3.0/1.0 | 3.0 | 1.0 | 1.00±0.28 | 0.3 | 1.22/200 |
| Φ4.8/1.6 | 4.8 | 1.6 | 1.00±0.28 | 0.3 | 1.22/100 |
| Φ6.4/2.1 | 6.4 | 2.1 | 1.00±0.28 | 0.3 | 1.22/100 |
| Φ7.9/2.6 | 7.9 | 2.6 | 1.40±0.28 | 0.45 | 1.22/100 |
| Φ9.5/3.2 | 9.5 | 3.2 | 1.40±0.28 | 0.45 | 1.22/50 |
| Φ12.7/4.2 | 12.7 | 4.2 | 1.78±0.38 | 0.53 | 1.22/50 |
| Φ15.4/5.1 | 15.4 | 5.1 | 1.78±0.38 | 0.53 | 1.22/50 |
| Φ18.0/6.0 | 18.0 | 6.0 | 2.25±0.55 | 0.68 | 1.22/50 |
| Φ19.1/6.4 | 19.1 | 6.4 | 2.25±0.55 | 0.68 | 1.22/50 |
| Φ24.0/8.0 | 24.0 | 8.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ25.4/8.4 | 25.4 | 8.4 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ30.0/10.0 | 30.0 | 10.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ39.0/13.0 | 39.0 | 13.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ50.0/16.0 | 50.0 | 16.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| 4:1 | |||||
| Φ4.0/1.0 | 4.0 | 1.0 | 1.00±0.28 | 0.3 | 1.22/100 |
| Φ6.0/1.5 | 6.0 | 1.5 | 1.00±0.28 | 0.3 | 1.22/100 |
| Φ8.0/2.0 | 8.0 | 2.0 | 1.00±0.28 | 0.3 | 1.22/100 |
| Φ12.0/3.0 | 12.0 | 3.0 | 1.40±0.28 | 0.45 | 1.22/50 |
| Φ16.0/4.0 | 16.0 | 4.0 | 1.78±0.38 | 0.53 | 1.22/50 |
| Φ18.0/4.5 | 18.0 | 4.5 | 2.25±0.55 | 0.68 | 1.22/50 |
| Φ20.0/5.0 | 20.0 | 5.0 | 2.25±0.55 | 0.68 | 1.22/25 |
| Φ24.0/6.0 | 24.0 | 6.0 | 2.25±0.55 | 0.68 | 1.22/25 |
| Φ32.0/8.0 | 32.0 | 8.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ40.0/10.0 | 40.0 | 10.0 | 2.54±0.55 | 0.76 | 1.22/25 |
| Φ52.0/13.0 | 52.0 | 13.0 | 2.54±0.55 | 0.76 | 1.22/25 |
