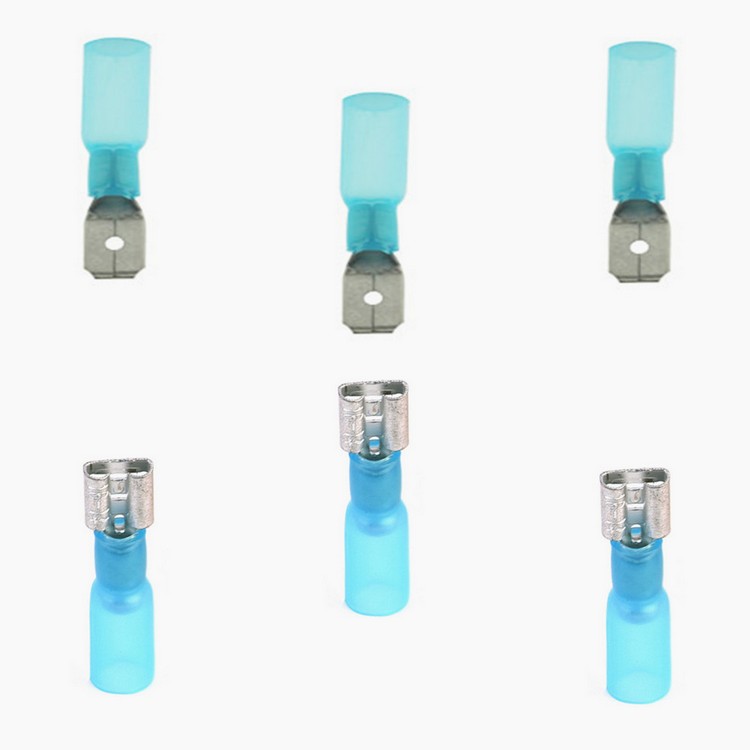

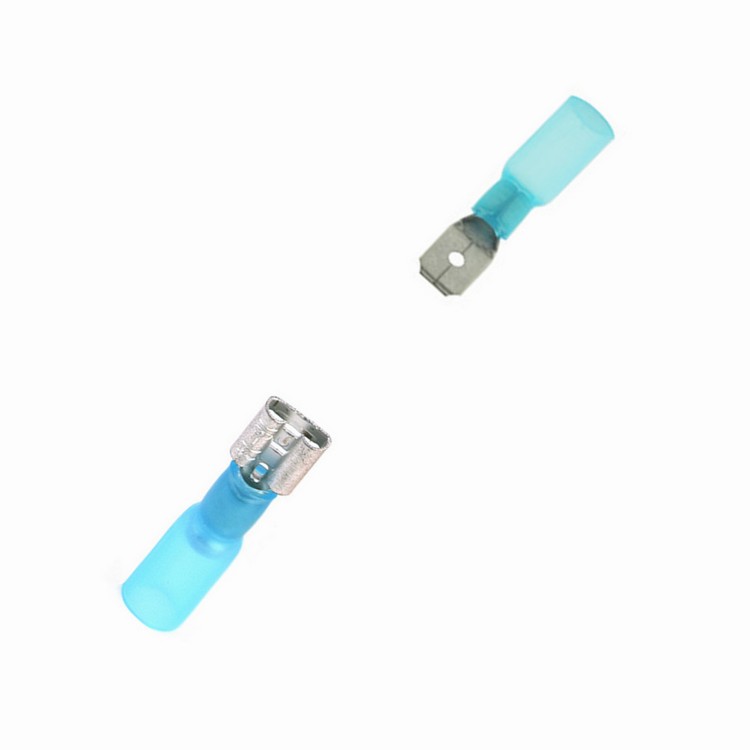

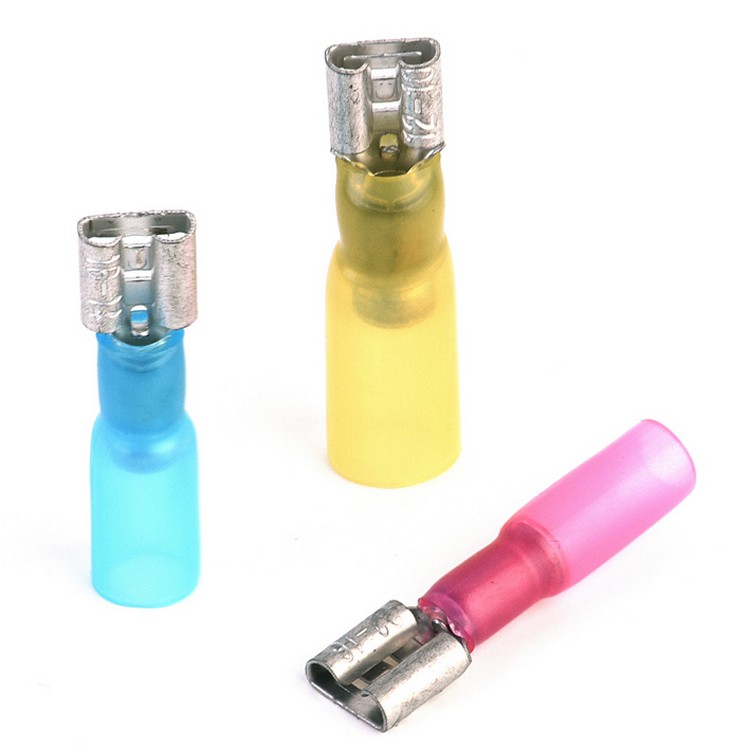

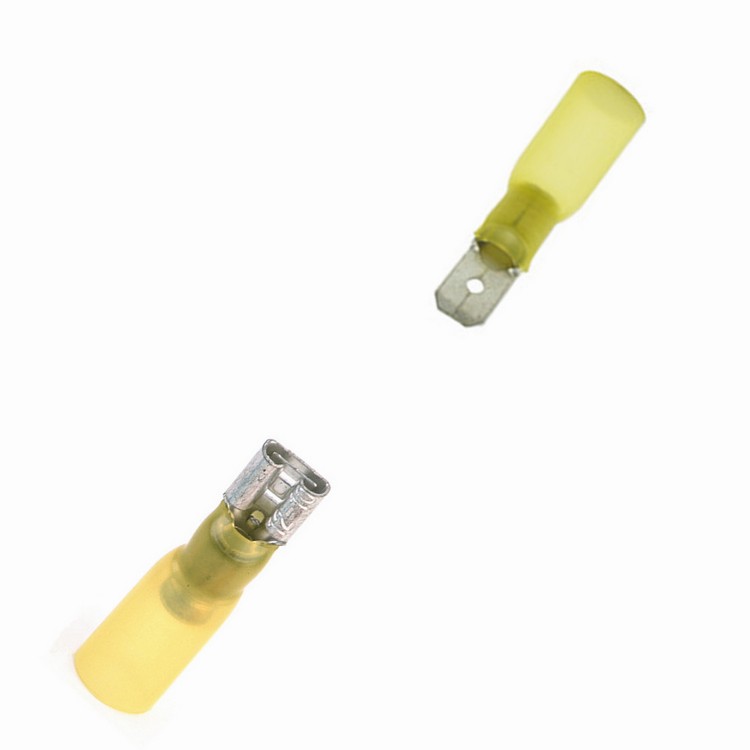

HP-DS-PH06 series is the high transparency heat shrinkable tubing made by Polyolefin, with adhesive lining to protect splices from water and corrosion. It provides strain relief and anti-vibration in rugged environment, and completely insulates and protects electrical connections. The high purity brass part provides excellent conductivity. The easy entry sleeve outside the copper terminal can quickly guide the wire for easy installation. It offers long duration performance, easy installation, and low installing cost, which is more reliable than conventional crimp terminals.
Shrinkage ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity keeps steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Minimum shrink temperature: 180℃
Terminal body: Copper
|Color||Conductor||Wall of Copper Terminal (mm)|
|HP-DS-PH06R48||4.8||1.6||5.2||4.8×0.8||30||Red||0.5-1.5mm2 (22-18 AWG)||0.4|
|HP-DS-PH06B48||5.8||2.2||5.2||4.8×0.8||30||Blue||1.5-2.5mm2 (16-14 AWG)||0.4|
|HP-DS-PH06R63||4.8||1.6||6.6||6.3×0.8||30||Red||0.5-1.5mm2 (22-18 AWG)||0.4|
|HP-DS-PH06B63||5.8||2.2||6.6||6.3×0.8||30||Blue||1.5-2.5mm2 (16-14 AWG)||0.4|
|HP-DS-PH06Y63||6.8||3.4||6.6||6.3×0.8||32||Yellow||4-6mm2 (12-10 AWG)||0.4|
Hampool products are widely used in different applications such as wire harness, cable assemblies in commercial electronics, automotive, military, industrial, equipment, truck and marine, etc.
Usually we relied customers within 24 hours, we supply free samples if need quality confirmation. If any problems with our products, we must solve and replied timely, we may contact face by face and asked our factory to make some explain, solutions.
We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection and pre-shipment product inspection.
We provides special services such as customized packaging and customized products.
Our factory has always adhered to the principle of solving the same day’s issues on the same day and responding in a timely manner within 24 hours; We provides special services such as customized packaging and customized products; We also have a complete inspection process, pre-production raw material inspection, in-production quality inspection and pre-shipment product inspection , Best for all customers.
1.Q: Which certifications or test reports do you have?
A: We have UL and RoHS tested by SGS.
2.Q: How to ship my order? Is it safe?
A: For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS.For big packages, we will send them By AIR or By SEA. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
3.Q: What about your lead time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock, or stock is not enough, we will confirm lead time with you according to your order quantity.
4.Q: Can you provide samples? Are the samples free ?
A: Yes, we can provide samples.Usually for our standard products with stock, we can supply samples free for testing.
5.Q: Could I put my own logo on it?
A: Sure, you can as we are a professional manufacturer and have over 10 years OEM experience.
RoHS, CE, UL, Reach, ISO9001.
